| Solid Carbide Endmills M50X Series | 全鎢鋼銑刀 |
| Appearance 外觀 |
Name 名稱 |
Diameter 外徑 |
Helix 螺旋角 |
Coating 塗層 |
Material 加工材料 |
|---|---|---|---|---|---|
 ESSSA2 |
Square．Standard(2F) 平銑刀．標準型(2刃) |
Ø0.5 ~ Ø16 | 35° | ANAX |
|

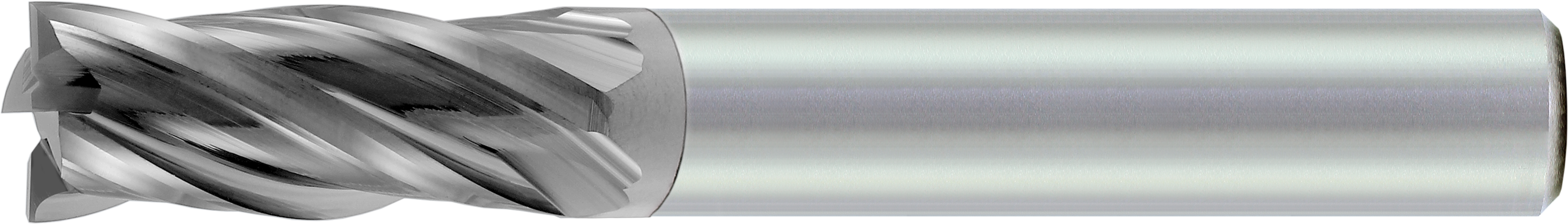

 ESSSA4 |
Square．Standard(4F) 平銑刀．標準型(4刃) |
Ø1 ~ Ø14 | 35° | ANAX |
|

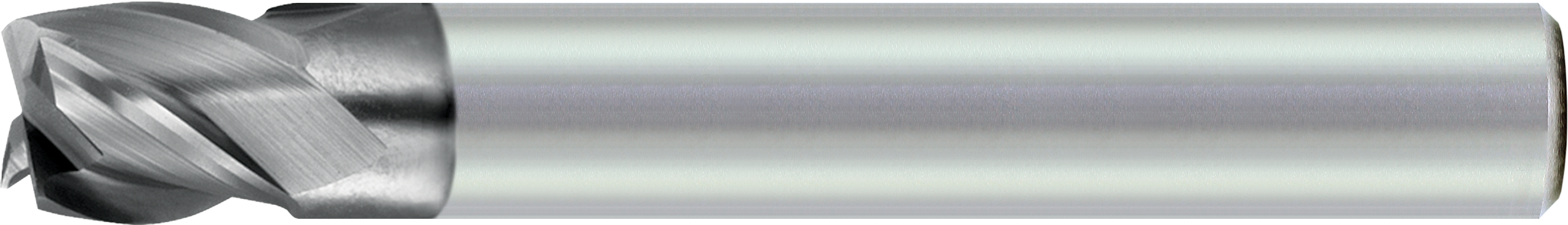

 ESSHA4 |
Square．Short Flute(4F) 平銑刀．短刃型(4刃) |
Ø3 ~ Ø16 | 35° | ANAX |
|

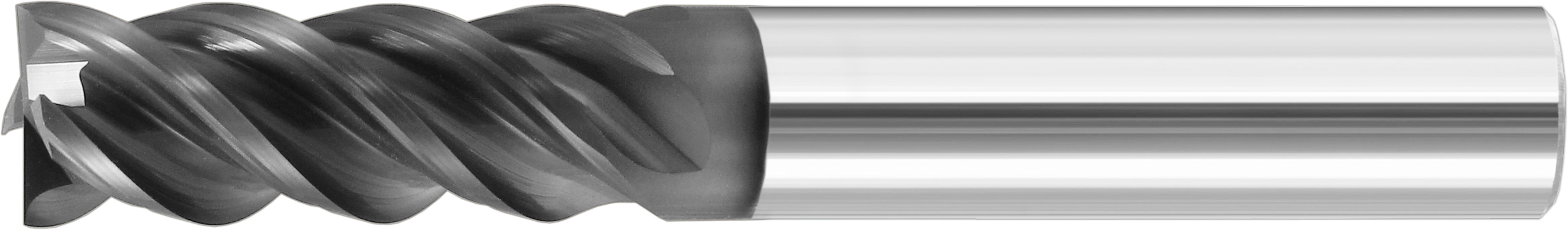

 ESSSB4 |
Square．High Helix(4F) 平銑刀．高導高效能型(4刃) |
Ø1 ~ Ø16 | 45° | ANAX |
|
 ESSSW3 |
Square．Wave Edge(3F) 平銑刀．波浪型(3刃) |
Ø6 ~ Ø20 | 30° | ANAX |
|

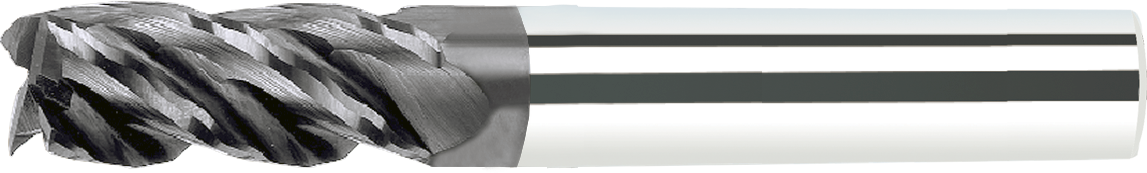

 ESSSW4 |
Square．Wave Edge(4F) 平銑刀．波浪型(4刃) |
Ø6 ~ Ø20 | 30° | ANAX |
|

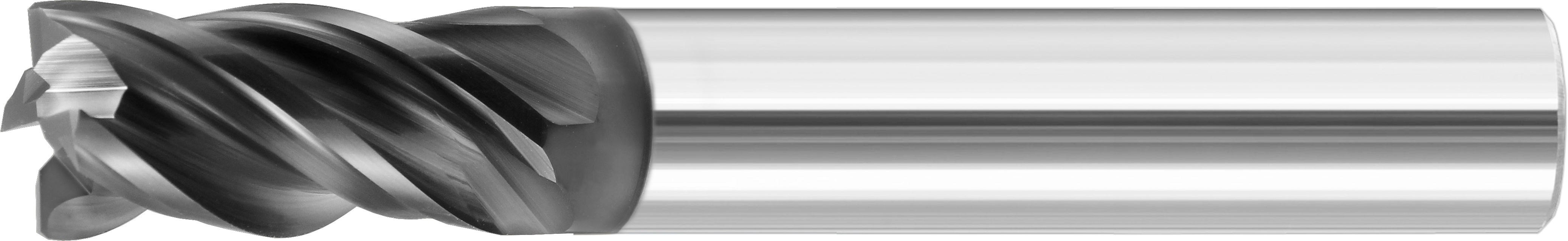

 ESSSU4 |
Square．Chamfer．High Feed(4F) 平銑刀．高進給倒角型(4刃) |
Ø3 ~ Ø16 | 30° | ANAX |
|
 ESCSU4 |
Square．Radius．High Feed(4F) 平銑刀．高進給圓角型(4刃) |
Ø3 ~ Ø16 | 40° | ANAX |
|
 ESBSA2 |
Ball Nose．Standard(2F) 球型銑刀．標準型(2刃) |
0.25R ~ 8R | 30° | ANAX |
|
 ESBHS3 |
Ball Nose．Near Center Design(3F) 球型銑刀．刃近中心型(3刃) |
0.25R ~ 8R | 30° | ANAX |
|
|
ESBHS4 |
Ball Nose．Near Center Design(4F) 球型銑刀．刃近中心型(4刃) |
1R ~ 8R | 35° | ANAX |
|
 ESCSA4 |
Corner Radius．Standard(4F) 圓鼻銑刀．標準型(4刃) |
Ø1 ~ Ø12 | 35° | ANAX |
|
＊加工材料以實心為主，空心為次主。
