CARD Series

．Use RDMT or RDMW 2.5R, 3R, 3.5R, 5R, 6R and 8R round inserts.

．Suitable for mould & die machining and steel profiling.

．10 ~ 100mm cutter diameter.            

．使用 RDMT 或 RDMW 2.5R , 3R , 3.5R , 5R , 6R 或 8R 圓形銑刀片

．適用於模具與各類型鋼料仿形加工          

．10 ~ 100mm 刀桿直徑          

CARP Series

．Use RPMT or RPMW 4R, 5R and 6R round inserts.

．Suitable for mould & die machining and steel profiling.

．16 ~ 80mm cutter diameter.              

．使用 RPMT 或 RPMW 4R , 5R 或 6R 圓形銑刀片

．適用於模具與各類型鋼料仿形加工          

．16 ~ 80mm 刀桿直徑          

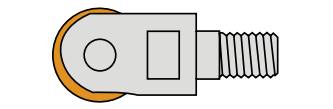

CF21 Series

．Use WP32 5R, 6R, 8R, 10R, 12.5R and 16R ball nose inserts.

．Suitable for mould & die finish or medium copy milling.

．10 ~ 32mm cutter diameter.              

．使用 WP32 5R , 6R , 8R , 10R , 12.5R 或 16R 球形銑刀片

．適用於模具中加工或精加工應用的仿形銑削          

．10 ~ 32mm 刀桿直徑          

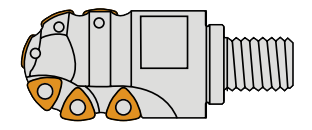

CF22 Series

．Use WP26 inserts.                  

．Ball nose cutters are suitable for mould & die copy roughing.

．25 ~ 50mm cutter diameter.              

．使用 WP26 銑刀片                 

．適用於粗加工應用的仿形銑削          

．25 ~ 50mm 刀桿直徑          

CGWV Series

．Use WPBC16 inserts.                  

．Various corner radii available for copy or shoulder milling.

．16mm cutter diameter.               

．使用 WPBC16 銑刀片                  

．提供各種圓角，用於仿形或方肩銑削          

．16mm 刀桿直徑
